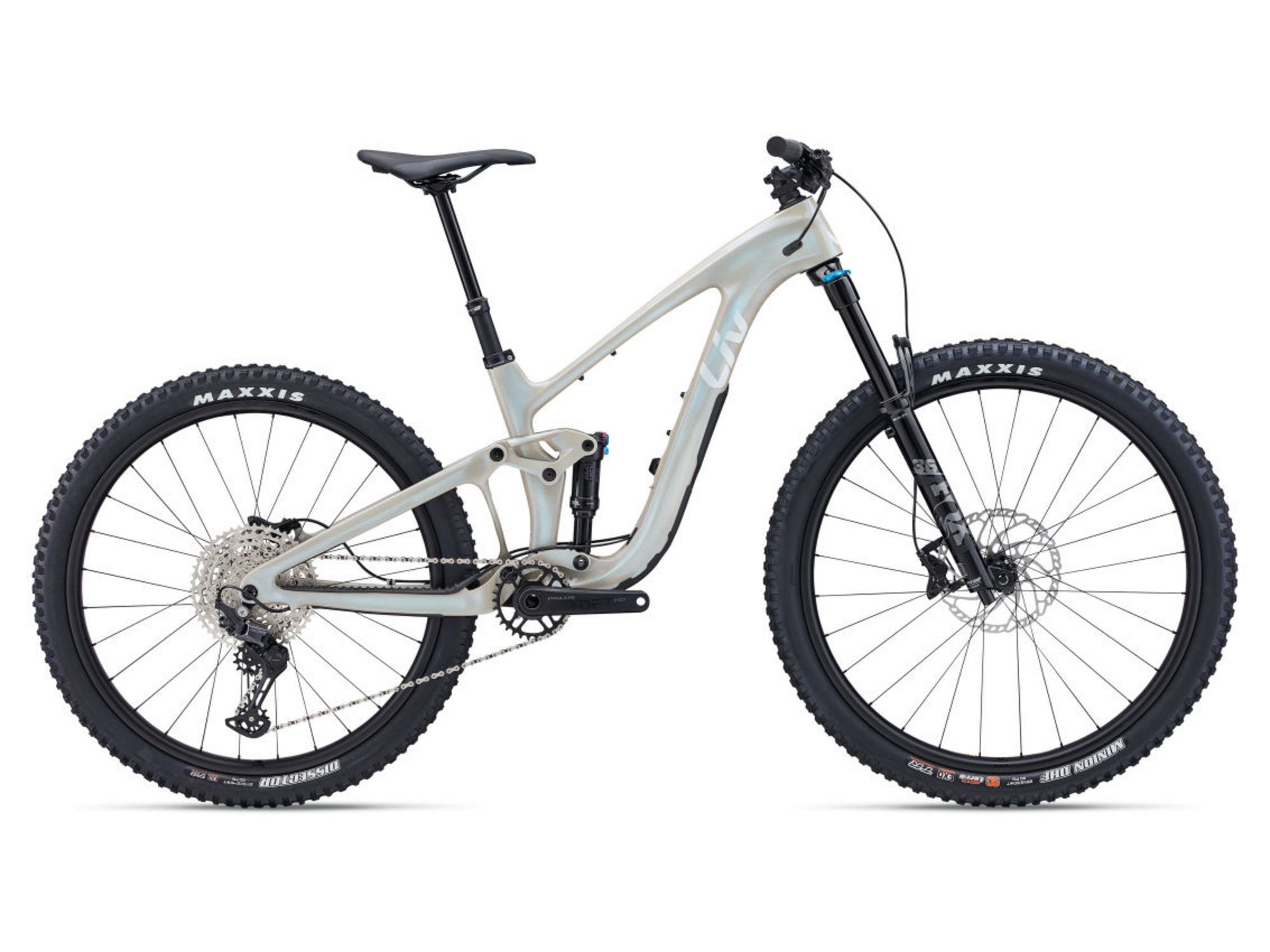

Liv Intrigue X Advanced 3

Liv Intrigue X Advanced 3
$4,700.00
Color: Shoreline
Size: Select size
Wheel Size: 29-inch front / 27.5-inch rear
Please select options Unavailable
Order now and pick up in-store for free

Details

The exceptionally versatile Intrigue X Advanced was designed to expand your trail capabilities, from technical descents to nimble and efficient climbs, and all the exhilarating flowy goodness in between. Extremely customizable with adjustable geometry, frame storage, and wheel options, the Intrigue X Advanced delivers extra performance and fun.

KEY PERFORMANCE FACTORS

- Performance Mid Travel Trail
Constructed with lightweight Advanced-grade composite for an agile, responsive ride, the frame also boasts integrated down tube storage — a sleek solution for additional space to store your tools and snacks. Paired with 140mm of Maestro rear suspension and 150mm of front suspension, you’ve got the ultimate trail bike that’s efficient on the ups and shreds on the downs.

- Adjustable Frame Geometry
For ultimate adjustability, the Intrigue X Advanced features flip chip – Maestro 3 and the new flip chip – headset allowing you to customize the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*. Not only can you change the head tube angle, seat tube angle, and bottom bracket height — you can now adjust your headset position to achieve either a short, mid, or long reach. These fine-tuning adjustments optimize your riding position for better handling and stability, wherever your bike takes you. *Rear wheel size change available for M and L only

- Best of Both Wheels
Frame sizes XS and S are solely designed for an MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, allows a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear*. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L

TECHS AND FEATURES

-ADVANCED COMPOSITE TECHNOLOGY
Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.

- ADVANCED FORGED COMPOSITE TECHNOLOGY
A state-of-the-art, high-pressure molding process used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar aluminum components.

- MAESTRO SUSPENSION TECHNOLOGY
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.

- OVERDRIVE
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

- TUBELESS SYSTEM
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.

Sizes:
FRAME SIZEX-SMALLSMALLMEDIUMLARGE
GEOMETRY POSITIONLOW | MID | HIGH LOW | MID | HIGHLOW | MID | HIGHLOW | MID | HIGH
SEAT TUBE LENGTH (mm)370 390420450
SEAT POST INSERTION DEPTH (mm)240 260290320
SEAT TUBE ANGLE76.2° | 76.6° | 76.9° 76.2° | 76.6° | 76.9°76.8° | 77.2° | 77.5°76.8° | 77.2° | 77.5°
TOP TUBE LENGTH (mm)548 | 547 | 546 564 | 563 | 562582 | 581 | 580603 | 602 | 601
HEAD TUBE LENGTH (mm)95 100105110
HEAD TUBE ANGLE64.4° | 64.8° | 65.1° 64.4° | 64.8° | 65.1°64.4° | 64.8° | 65.1°64.4° | 64.8° | 65.1°
FORK RAKE (mm)44 444444
TRAIL (mm)134.2 | 131.3 | 128.3 134.1 | 131.3 | 128.3134.1 | 131.3 | 128.3134 | 131.3 | 128.3
WHEELBASE (mm)1159 | 1159 | 1158 1176 | 1176 | 11751202 | 1201 | 12011224 | 1224 | 1223
CHAIN STAY LENGTH (mm)440 | 439 | 438 440 | 439 | 438440 | 439 | 438440 | 439 | 438
BOTTOM BRACKET DROP (mm)25 | 20 | 15 25 | 20 | 1540 | 35 | 3040 | 35 | 30
STACK (mm)615 | 613 | 610 620 | 617 | 614621 | 619 | 616626 | 623 | 620
REACH (mm)397 | 401 | 405 412 | 415 | 420436 | 440 | 444456 | 459 | 464
STAND OVER HEIGHT (mm)730 | 734 | 738 733 | 737 | 742745 | 749 | 754767 | 771 | 776
HANDLEBAR WIDTH (mm)760 760760780
STEM LENGTH (mm)40 505050
CRANK LENGTH (mm)165 170170170
WHEEL SIZE29" / 27.5" 29" / 27.5"29" / 29"29" / 29"
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
X-Small150 - 163 4'11" - 5'4"
Small158 - 169 5'2" - 5'7"
Medium164 - 175 5'5" - 5'9"
Large170 - 181 5'7" - 5'11"

Specs

Pedals Sold Separately
Fork Fox 36 Float Rhythm, 150mm, Grip damper, Boost 15x110 Kabolt X, tapered, 44mm offset
Hubs Front: Giant MTB alloy, 6-bolt
Rear: Giant MTB alloy, 3-pawl driver, 6-bolt
Rims Giant TRX carbon WheelSystem, 30mm rim inner width XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29
Stem Giant Contact SL, 35mm XS: 40mm, S: 50mm, M: 50mm, L: 50mm
Chain KMC X12
Frame Advanced-grade composite front and rear triangles, 140mm Maestro Suspension, flip chip – Maestro 3, flip chip – headset, integrated down tube storage
Tires Size XS, S, M and L, [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
Brakes Shimano BR-MT420, hydraulic
Rotors Front: Shimano RT-66 203mm
Rear: Shimano RT-66 180mm
Saddle Liv Sylvia
Spokes Sapim
Crankset Praxis Cadet M24 Boost, 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm, L: 170mm
Seatpost Giant Contact Switch, adjustable dropper, remote XS: 140-170mm travel / 30.9 x 470mm S: 140-170mm travel / 30.9 x 470mm M: 170-200mm travel / 30.9 x 530mm L: 170-200mm travel / 30.9 x 530mm
Shifters Shimano Deore, 1x12
Handlebars Giant Contact TR35, 20mm rise, alloy XS: 760mm, S: 760mm, M: 760mm, L: 780mm
Rear Shock Fox Float Performance, 185x52.5, custom-tuned for Liv
Tape/Grips Liv Tactal Pro Single Lock-on XS/S: 120mm M/L: 130mm
Brake Levers Shimano BL-MT401
Bottom Bracket Praxis, press fit
Rear Derailleur Shimano Deore, Shadow +
Cassette/Freewheel Shimano Deore M6100, 10x51
Front Derailleur N/A

* Subject to change without notice.

Part Numbers

Option UPC MPN
Shoreline / Medium / 29-inch front / 27.5-inch rear 4712878969483 1059012105
Shoreline / Small / 29-inch front / 27.5-inch rear 4712878969476 1059012104
Shoreline / Large / 29-inch front / 27.5-inch rear 4712878969490 1059012107
Shoreline / X-Small / 29-inch front / 27.5-inch rear 4712878969469 1059012103
