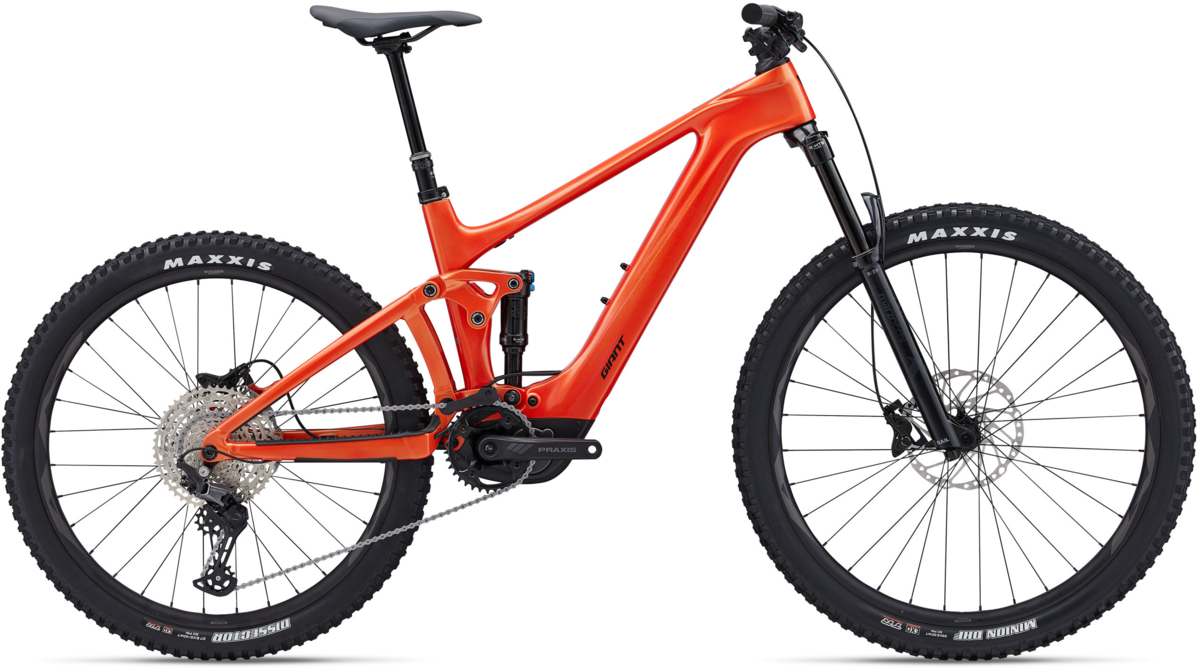

Giant Trance X Advanced E+ Elite 3
Details
Accelerate up climbs, float through rock gardens, and experience more power, agility and control with this lightweight, full-suspension E-MTB. The ultra-slim battery minimizes weight so you can ride technical trails the way you always dreamed of.
Lighter weight
EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.
Advanced cockpit control
RideControl Ergo 3 remote attaches to the composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customize your controls for a clean, uncluttered cockpit.
More power
New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterizes SyncDrive Pro motors. It’s also engineered for a reduced noise level and quiet performance.
| Frame Size | Small (Low | High) | Medium (Low | High) |
|---|---|---|
| Seat Tube Length (mm) | 400 | 425 |
| Seat Post Insertion Depth (mm) | 220 | 245 |
| Seat Tube Angle (degrees) | 77.2° | 78.0° | 76.0° | 76.7° |
| Top Tube Length (mm) | 577 | 575 | 607 | 605 |
| Head Tube Length (mm) | 95 | 100 |
| Head Tube Angle (degrees) | 65.7° | 66.5° | 65.8° | 66.5° |
| Fork Rake (mm) | 44 | 44 |
| Trail (mm) | 113.1 | 108 | 113.1 | 108 |
| Wheelbase (mm) | 1194 | 1195 | 1215 | 1212 |
| Chain Stay Length (mm) | 447 | 447 | 447 | 447 |
| Bottom Bracket Drop (mm) | 10 | 10 |
| Stack (mm) | 607 | 601 | 611 | 605 |
| Reach (mm) | 439 | 447 | 457 | 462 |
| Stand Over Height (mm) | 726 | 735 | 733 | 742 |
| Handlebar Width (mm) | 780 | 780 |
| Stem Length (mm) | 40 | 40 |
| Crank Length (mm) | 160 | 165 |
| Wheel Size | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] |
| Frame Size | Rider Height (in) | Rider Height (cm) |
|---|---|---|
| Small | 5'4" - 5'9" | 163 - 174 |
| Medium | 5'7" - 6'0" | 171 - 182 |
Specs
| Frame | Advanced-grade composite frame, Aluxx SL-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system |
|---|---|
| Fork | Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110 |
| Rear Shock | Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30% |
| Rims | Giant AM30, Tubeless ready, 30mm inner width, 29" [F] / 27.5" [R] |
| Hubs | Shimano MT410 Boost, Center-Lock, 110x15 [F] 148x12 Shimano Micro-Spline Drive Body Thru-axle [R] |
| Spokes | Sapim E-Lite [R] Race [F], e-bike optimized |
| Tires | Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
| Crankset | Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks (Q-factor=168, S:160, M/L:165, XL:170) |
| Shifters | Shimano Deore |
| Front Derailleur | MRP HD2 co-moulded chain guide |
| Rear Derailleur | Shimano Deore 12-speed, Shadow+ |
| Cassette/Freewheel | Shimano CS-M6100-12, 10-51T, 12-speed |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimized |
| Brakes | Shimano BR-MT420, 4-piston, hydraulic disc,203mm [F/R] |
| Brake Levers | Shimano Deore, I-spec EV |
| Handlebars | Giant Contact SL 35 Trail, 35x780mm |
| Tape/Grips | Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL |
| Stem | Giant Contact SL 35 |
| Seatpost | Tranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm) |
| Saddle | Giant Romero |
| Accessories & Extras | Tubeless kit (liquid, valves, levers, manual, tool)Inner tube supplied |
| Motor | Giant SyncDrive Pro2 Mg, 85Nm, PedalPlus 6-Sensor technology |
| Battery | Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible |
| Controller/Display | Giant RideControl Ergo3, grip integrated remote / Giant RideControl GO, frame integrated LED consoleOptional wireless ANT+ display |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Helios Orange / Small / 29-Inch | 04712878927315 | 5280309104 |
| Helios Orange / Medium / 29-Inch | 04712878927322 | 5280309105 |
