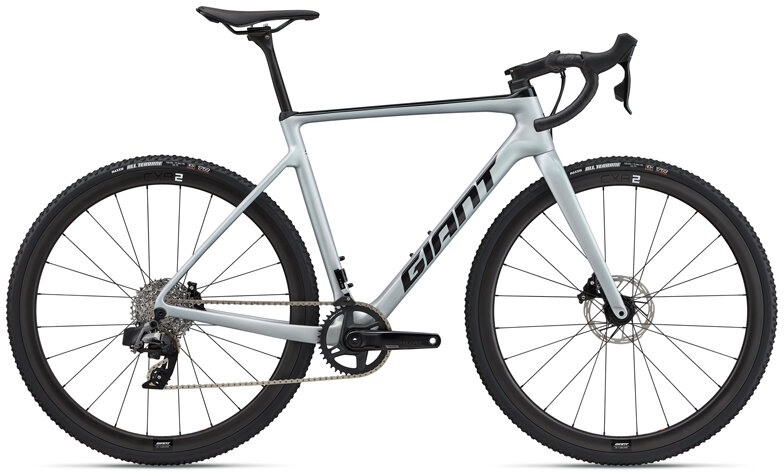

Giant TCX Advanced Pro 1

Giant TCX Advanced Pro 1
  • Color: Supernova
$4,800.00
Color:
Supernova
Please select options
Sorry, this item is currently not available. Please call us at 504-828-1862 check back.

Details

IN CYCLOCROSS RACING, EVERY ADVANTAGE COUNTS. FAST STARTS, TIGHT CORNERS, TOTAL CONTROL ON DIRT, SAND, AND MUD. PROVEN THROUGH YEARS OF PRO WINS AND PODIUM PLACINGS, THE LATEST TCX ADVANCED PRO IS FASTER AND SMOOTHER THAN EVER.

KEY PERFORMANCE FACTORS

Elite level efficiency
Advanced-grade composite frameset is 17.5 percent lighter than the previous generation while retaining its best-in-class torsional/pedaling stiffness.

Total control
Integrated disc brake technology with flat mounts and thru-axle hubs, combined with tubeless-ready Giant WheelSystem, delivers added control in variable conditions and all types of weather.

Smooth ride quality
D-Fuse composite seatpost helps absorb bumps and vibrations, and you also have the option to switch to a standard 30.9mm round or dropper post depending on your riding style and terrain.

TECHS & FEATURES

ADVANCED COMPOSITE TECHNOLOGY
Giant’s High-Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

D-FUSE TECHNOLOGY
The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.

OVERDRIVE 2
The most advanced steerer tube technology in today’s Giant bikes. Designed to offer unprecedented front-end steering performance, the system’s oversized headset bearings (1 1/2" lower, 1 1/4" upper) and tapered steerer tube work in harmony to provide supreme steering stiffness.

TUBELESS SYSTEM
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

Geometry

Sizes:
SmallMediumLargeMedium/
Large
X-Large
A SEAT TUBE LENGTH (mm) 505 525 545 555 565
B SEAT TUBE ANGLE 73.5° 73.0° 73.0° 73.0° 73.0°
C TOP TUBE LENGTH (mm) 530 545 560 575 590
D HEAD TUBE LENGTH (mm) 133 148 163 178 193
E HEAD TUBE ANGLE 71.0° 71.5° 72.0° 72.5° 72.5°
F FORK RAKE (mm) 50 50 50 50 50
G TRAIL (mm) 68.3 65.1 61.8 58.6 58.6
H WHEELBASE (mm) 1014 1020 1030 1040 1055
I CHAIN STAY LENGTH (mm) 430 430 430 430 430
J BOTTOM BRACKET DROP (mm) 60 60 60 60 60
K STACK (mm) 540 556 572 589 603
L REACH (mm) 370 375 385 395 406
M STAND OVER HEIGHT (mm) 788 807 826 832 845
N HANDLEBAR WIDTH (mm) 400 420 420 440 440
O STEM LENGTH (mm) 80 90 100 100 110
P CRANK LENGTH (mm) 170 172.5 172.5 175 175
Q WHEEL SIZE 700C 700C 700C 700C 700C

Specs

Frame Advanced-Grade Composite, 12mm thru-axle, disc
Fork Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc
Rims Giant CXR 2 Carbon Disc WheelSystem,[F] 35mm, [R] 35mm
Hubs [F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl driver, CenterLock, 12mm thru-axle
Spokes Sapim Sprint
Tires Maxxis All-Terrene, 700x33c, tubeless
Bottom Bracket SRAM DUB, press fit
Crankset SRAM Rival D1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Shifters SRAM Rival eTap AXS, 1x12
Rear Derailleur SRAM Rival eTap AXS
Cassette/Freewheel SRAM Rival, 12-speed, 10x36
Chain SRAM Rival D1
Brakes SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]140mm
Brake Levers SRAM Rival eTap AXS hydraulic
Handlebars Giant Contact SL XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Tape/Grips Stratus Lite 3.0
Stem Giant Contact SL XS:70mm, S:80mm, M:90mm, M/L:100mm, L:100mm, XL:110mm
Seatpost Giant D-Fuse SLR, composite, -5/+15mm offset
Saddle Giant Approach SL
Pedals Sold separately
Accessories & Extras Giant 1x chainguide, tubeless prepared, 45mm max tire size

* Subject to change without notice.

Part Numbers

Option UPC MPN
Supernova / Small 04712878860810 2302015104
Supernova / Medium 04712878860827 2302015105
Supernova / Medium/Large 04712878860834 2302015106
Supernova / Large 04712878860841 2302015107
Supernova / X-Large 04712878860858 2302015108
