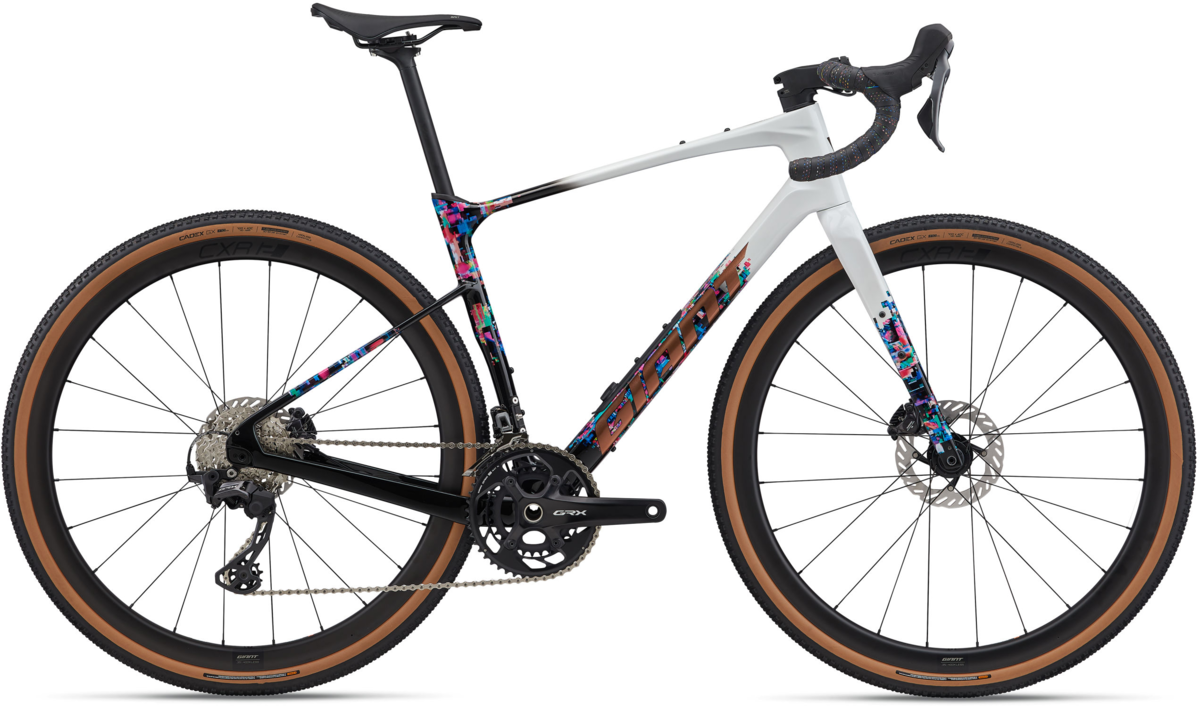

Giant Revolt Advanced 0-SE

Giant Revolt Advanced 0-SE
  • Color: Radio Spectrum
$4,100.00
Color: Radio Spectrum
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Sorry, this item is currently not available. Please call us at 504-828-1862 check back.

Details

A light, smooth and adaptable to variable conditions and terrain, the special edition Revolt Advanced SE combines ultra-efficient performance, next-level control, and striking colors and graphics that make it stand out in the pack.

FAST AND VERSATILE
An Advanced-grade composite frame and fork combine for lightweight efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tire clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.

TUNED COMPLIANCE
Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SL D-Fuse carbon handlebar and D-Fuse seatpost help smooth out rough tracks, improving control and minimizing fatigue over long distances.

SMART INTEGRATION
Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders.

Geometry Chart:
Frame Size X-SmallSmallMediumMedium/LargeLargeX-Large
Seat Tube Length (mm) 430 450 470 490 510 530
Seat Tube Angle 74.0° 73.5° 73.5° 73.0° 73.0° 73.0°
Top Tube Length (mm) 540 550 560 575 585 600
Head Tube Length (mm) 125 135 150 165 180 195
Head Tube Angle 70.0° 71.0° 71.5° 72.0° 72.0° 72.0°
Fork Rake (mm) 50 50 50 50 50 50
Trail (mm) 78 | 82 72 | 75 68 | 72 65 | 68 65 | 68 65 | 68
Wheelbase (mm) 1024 | 1034 1020 | 1030 1026 | 1036 1031 | 1041 1041 | 1051 1056 | 1066
Chain Stay Length (mm) 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435
Bottom Bracket Drop (mm) 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81
Stack (mm) 556 570 586 602 616 630
Reach (mm) 381 381 387 391 397 407
Stand Over Height (mm) 724 | 731 740 | 747 757 | 764 774 | 780 791 | 797 807 | 814
Handlebar Width (mm) 420 420 440 440 460 460
Stem Length (mm) 50 60 70 80 80 90
Crank Length (mm) 170 170 172.5 172.5 175 175
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
X-Small 155 - 165 5’1” to 5’5”
Small 159 - 171 5’3” to 5’7”
Medium 169 - 181 5’7” to 5’11”
Medium/Large 174 - 186 5’9” to 6’1”
Large 179 - 191 5’10” to 6’3”
X-Large 189 - 200 6’2” to 6’7”

Specs

Frame Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, integrated down tube storage
Fork Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc, FSA stainless upper/lower bearings
Rims Giant CXR 2 Carbon Disc WheelSystem, 25mm IW, 35mm H
Hubs Front: Giant alloy, CenterLock, 12mm thru-axle
Rear: Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle
Spokes Sapim Sprint
Tires CADEX GX, tubeless, 700x40c, 170 tpi, folding
Bottom Bracket Shimano BB71, press fit
Crankset Shimano GRX RX820, 31/48
Shifters Shimano GRX RX820, 2x12
Front Derailleur Shimano GRX FD-RX820
Rear Derailleur Shimano GRX RD-RX820
Cassette/Freewheel Shimano 105, 12-speed, 11x36
Chain KMC X12
Brakes Shimano GRX RX820 hydraulic
Shimano RT70 rotors [F]160mm, [R]160mm
Brake Levers Shimano GRX RX820
Handlebars Giant Contact XR D-Fuse, 31.8mm
Tape/Grips Stratus Lite 3.0
Stem Giant Contact AeroLight, -10 degree
Seatpost Giant D-Fuse SL, composite, -5/+15mm offset
Saddle Giant Grit
Pedals Sold Separately
Accessories & Extras integrated down tube storage bag, tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position

* Subject to change without notice.

Part Numbers

Option UPC MPN
Radio Spectrum / X-Small / 700c 04711291249714 1080044103
Radio Spectrum / Small / 700c 04711291249721 1080044104
Radio Spectrum / Medium / 700c 04711291249738 1080044105
Radio Spectrum / Medium/Large / 700c 04711291249745 1080044106
Radio Spectrum / Large / 700c 04711291249752 1080044107
Radio Spectrum / X-Large / 700c 04711291249769 1080044108
