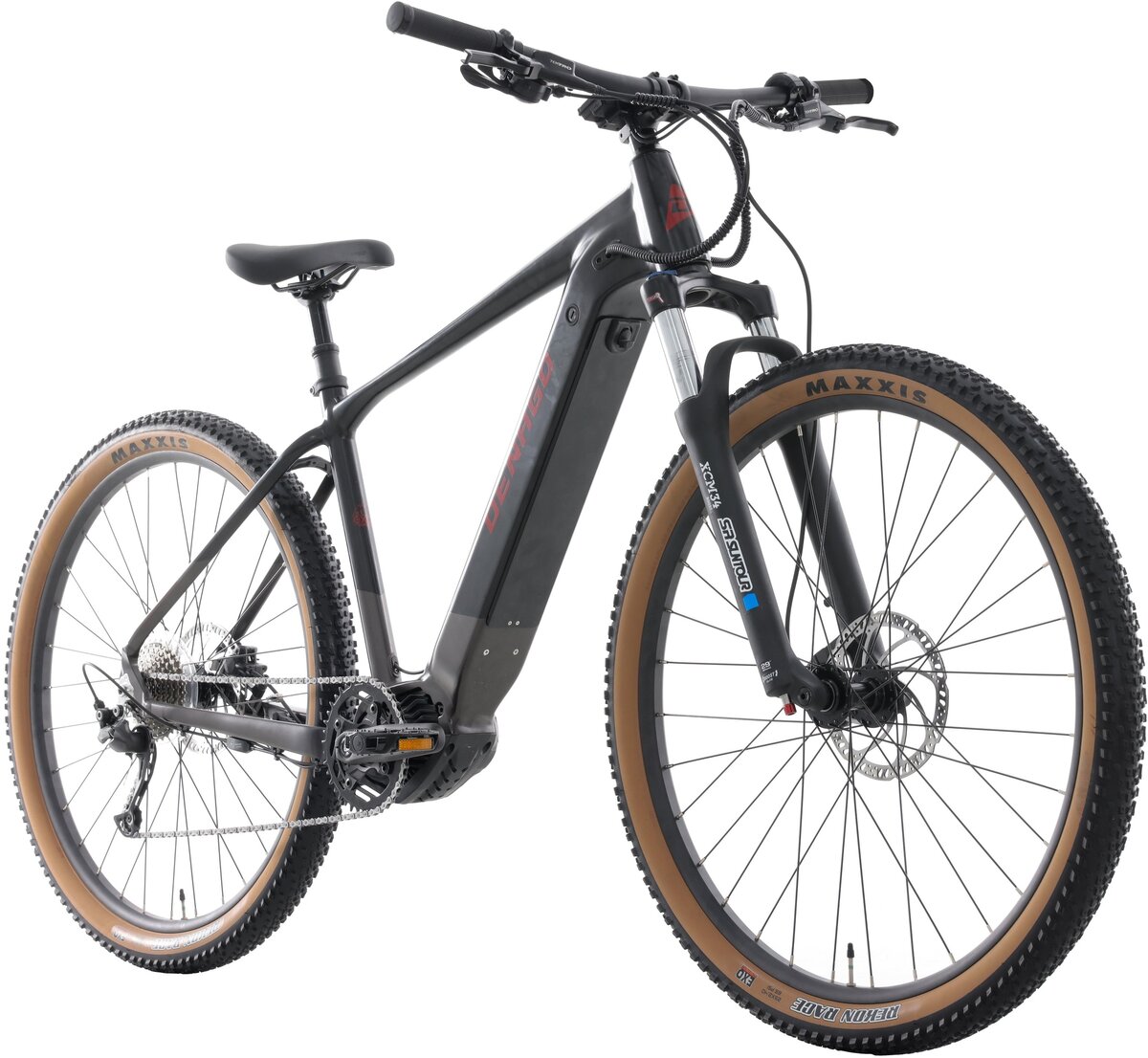

Denago eXC2 eMTB Mountain eBike

Denago eXC2 eMTB Mountain eBike
  • Color: Black with Gray
$3,199.00
Color: Black with Gray
Size: Select size
Please select options Unavailable
Sorry, this item is currently not available. Please call us at 504-828-1862 check back.

Details

Our eXC2 proves that it's possible to build a high-performance, trail-worthy eMTB that doesn't require a second mortgage to afford. Packed with value and features including the Bafang M510 mid-drive motor with torque sensor, 29" wheels and tires, and Suntour suspension fork with Boost spacing.

eXC2 shares the same frame with our eXC1 and adds an upgraded motor with more torque, larger battery, dropper seatpost, and a digital handlebar display.

eBike Features:

Bafang M510 mid-drive motor
- Select from 5 assist levels on the handlebar remote. The 250W M510 mid-drive motor produces 95Nm torque, an upgrade from the eXC1.
- It's also lighter than the previous M500 motor, reducing total bike weight.

672Wh battery
- Class-leading 48V, 14.0A (672Wh) Lithium-Ion battery, for more time on the trails between charges.
- Integrated within the down tube for a stealthy look. Battery locks into the frame for security.

Digital display
- See trip distance, odometer, max speed, average speed, estimated range remaining, and calories burned on the Bafang display.

There's even a USB port to power your GPS, phone, or other accessory from the eBike battery.

Class I eBike
- With up to 20 MPH on pedal assist, the eXC2 carries the Class I eBike designation for access to the most trails and parks possible.

Torque sensor
- eXC2 uses torque sensor technology, for the most natural pedaling feel on off-road surfaces.

COMPONENT HIGHLIGHTS

Dropper seatpost
- eXC2 includes a dropper seatpost with handlebar remote, so you can lower the saddle on-the-fly when riding on more challenging terrain.

Hydraulic disc brakes
- Powerful hydraulic disc brakes with oversized, 180mm rotors provide plenty of stopping power, even on steep terrain.

Shimano Alivio drivetrain
- 9-speed Alivio shifter and Shadow+ rear derailleur.

Maxxis Rekon Race 29x2.4" tires
- Upgraded skinwall sidewalls with EXO casing and big, aggressive knobs for grip.

Suntour XCM34 boost suspension fork
- eXC2 uses an upgraded Suntour XCM34 fork with 100mm travel, tapered steerer tube, and Boost axle spacing.

Thru-axle frame, fork, and wheels
- Thru-axle design eliminates flex, improving cornering performance and suspension tracking.

Our size and fit recommendations:
- Riders 5'7" - 5'9", Medium
- Riders 5'10" - 6'1", Large
- Riders 6'1 - 6'5", Extra Large

Always wear a helmet, and ride only where safe, legal, and appropriate.

Assembly tools included:
- Multitool: Our multitool has all the hex keys and screwdrivers you'll need to complete assembly.
- Pedal and axle nut wrench: Fits pedals and axle nuts, perfect for your home shop or to take on the road.
- Expert guidance: Instructions in the box. Free help via phone, live chat, or email.

Sizes:
Frame SizeMediumLargeX-Large
Head tube angle (°) 67.5 67.5 67.5
Seat tube angle (°) 74.1 73.7 73
Top tube length (actual) (mm) 598 609 640
Top tube length (effective) (mm) 614 634 667
Wheelbase (mm) 1204 1219 1245
Head tube length (mm) 140 140 140
Seat tube length (center to top) (mm) 419 470 508
Standover height (mm) 780 820 860
Maximum saddle height (mm) 990 1040 1070
Minimum saddle height (mm) 805 855 875
Handlebar height (mm) 1050 1050 1050
Total length, end to end (mm) 1943 1955 1981
Stack (mm) 657 657 657
Reach (mm) 444 459 484
Chainstay length (mm) 470 470 470
Sizes:
Rider HeightFrame Size
Riders 5'7" - 5'9" Medium
Riders 5'10" - 6'1" Large
Riders 6'1 - 6'5" X-Large

Specs

Frame 6061-T6 Aluminum Alloy
Fork SR Suntour XCM34 LOR Boost, 100mm travel, 1.5" to 1 1/8" tapered, 15mm thru-axle with 110mm spacing
Rims Aluminum Alloy, 32 holes, 29"
Hubs Front - sealed cartridge bearing, 6 bolt disc brake, 15mm thru-axle
Rear - sealed cartridge bearing, 6 bolt disc brake, 12x142mm thru-axle
Spokes Front - 32 spokes, 13 gauge
Rear - 32 spokes, 13 gauge
Tires Maxxis Rekon Race, 29x2.4", EXO casing, skinwall
Crankset Bafang alloy with 32 tooth narrow-wide style chainring
Shifters Shimano Alivio SL-M3000, 9 speed
Rear Derailleur Shimano Alivio RD-M3100, 9 speed, Shadow
Cassette/Freewheel Shimano CS-HG200, 9 speed, 11-36 teeth
Chain KMC E10 Sport
Brakes Tektro HD-E350 hydraulic disc
Rotors Tektro 180mm, 6 bolt type
Brake Levers Tektro HD-E350 hydraulic disc
Handlebars Zoom, aluminum alloy, 31.8mm clamp diameter, 740mm long (size Medium), 780mm long (size Large and Extra Large)
Tape/Grips Black rubber, lock-on style
Stem Zoom aluminum alloy, 31.8mm clamp, 1 1/8" threadless
Headset 1 1/8" - 1.5" tapered, sealed, threadless
Seatpost Limotec D1 dropper, 10mm offset, 31.6mm diameter, handlebar remote
Saddle Denago
Pedals Black alloy, 9/16"
Motor Bafang M510 Mid-drive, 48V, 250W; 95Nm torque
Battery Bafang 672 Wh (48V, 14A)
Controller/Display Bafang DP C244.CAN
Charger Multi-voltage 110-240V, 3A Fast Charger with USA plug

* Subject to change without notice.

Part Numbers

Option UPC MPN
Black with Gray / Medium 810066087231 DE-E08-BGR-M
Black with Gray / Large 810066087248 DE-E08-BGR-L
Black with Gray / X-Large 810066087255 DE-E08-BGR-XL
